Product Details:
|
| Keywords: | Sliding Driveway Gate Wheel | Usage: | Sliding Driveway Gate |
|---|---|---|---|
| Color: | Silver Or Yellow Zinc Surface-Plating | Meterial: | Steel Iron |
| Sample: | Available | Payment Terms: | 30% Deposit T/T In Advance,70% T/T Balance |
| Delivery Time: | Prompt | Package: | Carton+Pallet |
| High Light: | Single Bearings Sliding Gate Wheel 80Mm,4 Inches U Groove Gate Wheel,4 Inches Automatic Sliding Gate Wheel、 |
||

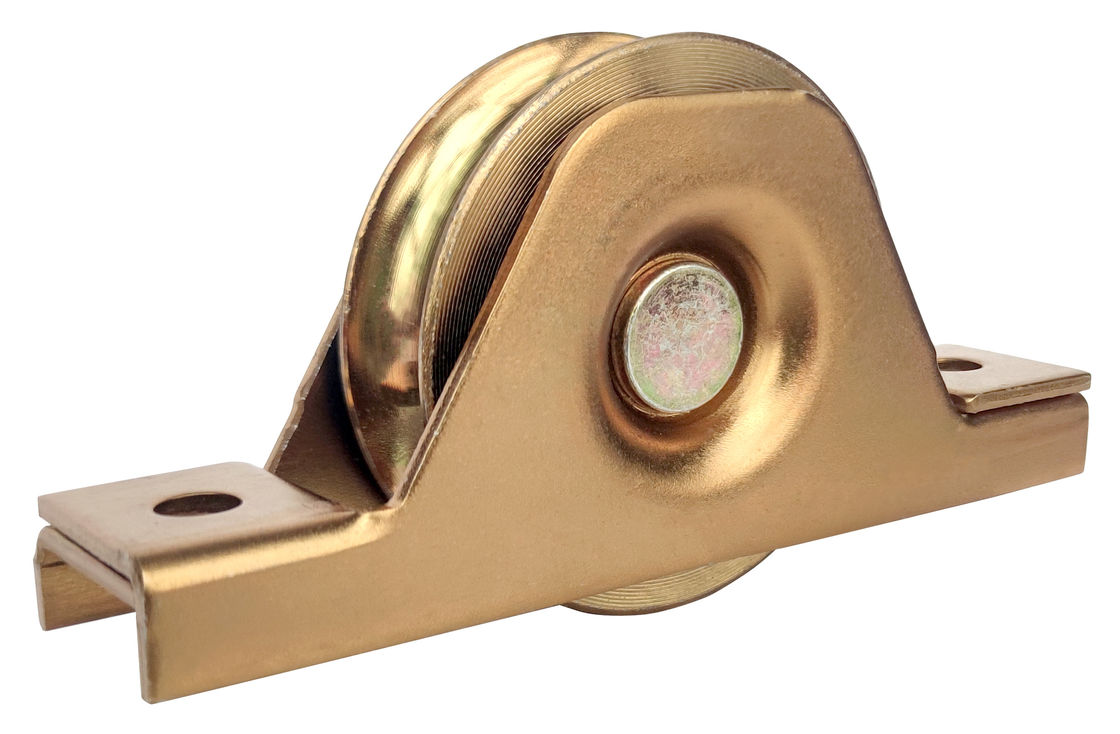

4 Inches U-Groove Gate Wheel For Automatic Sliding Gate For U-Shape Tracks
Quick Detail:
Single Bearings Sliding Gate Wheel Diameter 80 Mm With Support For Sliding Gates for automatic sliding gates.
The wheels have double bearings, which have higher load-bearing capacity than single bearings. The surface is
galvanized, and the colors are white zinc, yellow zinc or color zinc, and are produced according to customer needs.
The choice of guide system depends on whether the door has a flat top, whether it is sloped, the speed of the
automation, and whether the fence protrudes from the front of the frame. All guide systems should be designed so
that the gate will never tip over - even if the rollers are loose. A semicircular trough wheel with an external support
bracket for rolling along a slide. Each wheel has a separate weight rating, so buying multiple wheels spreads the load
and can support a larger weight. Bearing with inverted profile track suitable for flat mounting under door.
Material: steel, Q235, surface treatment can be yellow zinc plated or silver zinc plated.
Including:
2 x Gate Track Wheels
6 x 1m Steel Sliding Gate Tracks
1 x Double Roller Gate Guide Bracket
1 x gate stopper
1 x gate end catcher
Product Description:
| NO. | D mm | A | C | H | L | WT(g) |
| HD1V50 | 50 | 15 | 25 | 8.5 | 95 | 247 |
| HD1V60 | 58 | 17 | 26 | 10 | 110 | 353 |
| HD1V70 | 68 | 20 | 32 | 7 | 136 | 615 |
| HD1V80 | 78 | 20 | 32 | 12 | 136 | 780 |
| HD1V90 | 88 | 20 | 34 | 8 | 152 | 1033 |
| HD1V100 | 98 | 22 | 34 | 13 | 152 | 1294 |
| HD1V120 | 118 | 25 | 36 | 12 | 200 | 2181 |
| HD1V140 | 138 | 25 | 36 | 18 | 200 | 3050 |
Applications:
Gate doors/Factory doors/Entrance doors/Warehouse sliding doors
