Product Details:
|
| Product: | Y Groove Sliding Gate Wheel With Bolt | Key Words: | Y Groove Sliding Gate Wheel With Bolt |
|---|---|---|---|
| Material: | Q235 Metal | Surface: | Galvanized White And Yellow Colour |
| Size: | 38mm-----200mm | Bearing: | Double Bearings Or Single Bearing |
| MOQ: | 60pcs | Logo: | Ok |
| High Light: | Sliding Gate Wheel Y Groove,Sliding Gate Wheel With Bolt,Sliding Gate Wheel Q235 Metal |
||

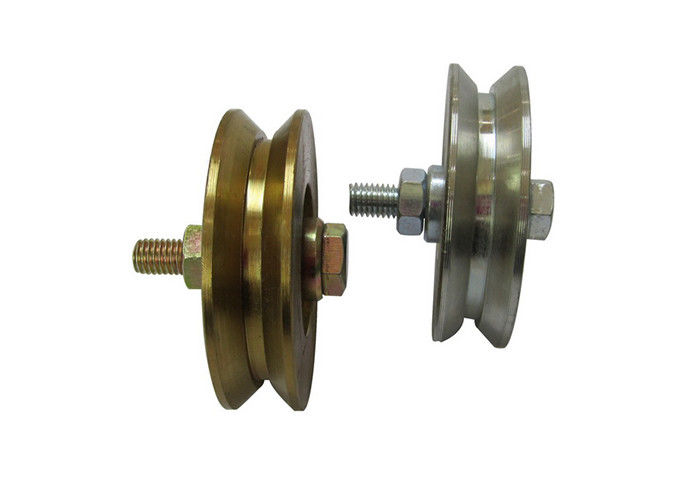

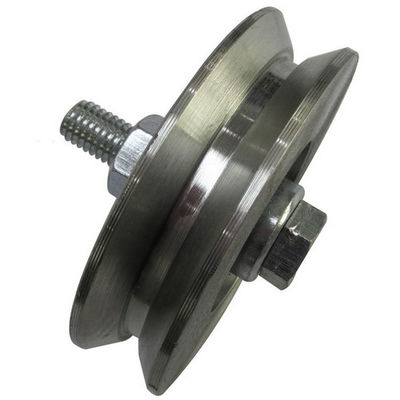

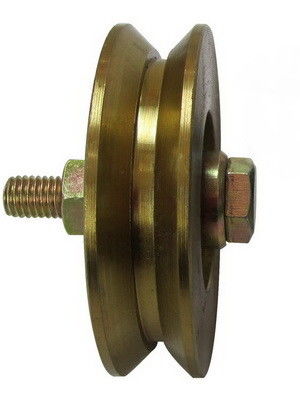

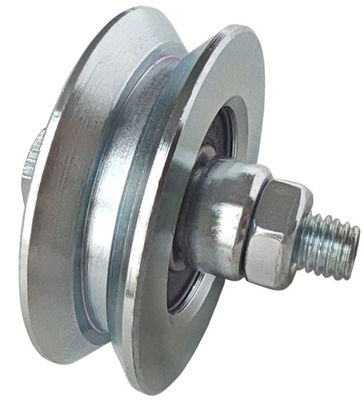

--Y Groove Sliding Gate Wheel with bolt
Y Groove Sliding Gate Wheel with bolt
JINNAIKE support Y Groove Sliding Gate Wheel with bolt with single bearing or double bearings
JINNAIKE support Y Groove Sliding Gate Wheel with bolt has Y, U, V , H grooves,
JINNAIKE support Y Groove Sliding Gate Wheel with bolt from 38mm to 200mm,
JINNAIKE support Y Groove Sliding Gate Wheel with bolt finish can be white zinc plated or yellow zinc plated,
| NO. | D mm | A | C | E | WT(g) |
| HL1Y40 | 38 | 12 | 24 | M8*40 | 102 |
| HL1Y50 | 50 | 15 | 26 | M8*40 | 152 |
| HL1Y60 | 58 | 17 | 24 | M10*55 | 284 |
| HL1Y70 | 68 | 20 | 28 | M10*55 | 444 |
| HL1Y80 | 78 | 20 | 28 | M10*55 | 607 |
| HL1Y90 | 88 | 20 | 30 | M12*60 | 826 |
| HL1Y100 | 98 | 22 | 30 | M12*60 | 1089 |
| HL1Y120 | 118 | 25 | 34 | M14*70 | 1834 |
| HL1Y140 | 138 | 25 | 44 | M16*75 | 2700 |
| HL1Y160 | 158 | 30 | 44 | M16*75 | 4134 |
JINNAIKE supply Y Groove Sliding Gate Wheel with bolt
--JINNAIKE other popular gate parts
--Our honor
--Packaging & Delivery
| Packing | All hanging are packaged by standard export package.solid and durable master carton |
| Delivery time | 5-25 day after order confirmed. |
| Payment term | T/T 30% deposit before production,TT 70% balance payment before shipment. |
| Delivery terms | FOB shanghai, CIF. |
--Our service
| Quality | ensure 100% product exported in high quality |
| Delivery | Delivery on time |
| service | Good after-sales service |
Jiaxing Jinnaike Hardware Products Co,.Ltd is a company engaged in hardware products trading company. Our company was established in 1995, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Our Company mainly engaged in sliding gate wheel series,cantilever gate carriage series,nylon roller series,gate hinge,gate latch,gate stopper and post cap. Our products are good in quality and cheap in price.To meet the customers’ demand,we could cooperate not only on the exiting products with customer’s private labels, also the specifications customer made, or even new items that can be produced by the current machine equipment or tooling. Y Groove Sliding Gate Wheel with bolt
Hope you will be interested in our Y Groove Sliding Gate Wheel with bolt, welcome to contact me, thanks!
Contact Person: Emily Mo
