Product Details:
|
| Product: | Sliding Gate Wheel | Key Words: | Sliding Gate Wheel |
|---|---|---|---|
| Material: | Q235 Metal | Surface: | Zinc Silver Or Yellow |
| Size: | 40mm-200mm | Bearing: | 1 Bearing Or 2 Bearings |
| MOQ: | 80pcs | Logo: | Ok |
| High Light: | V Groove Sliding Gate Wheel,Sliding Gate Wheel With Bolt,Q235 Metal Sliding Gate Wheel |
||

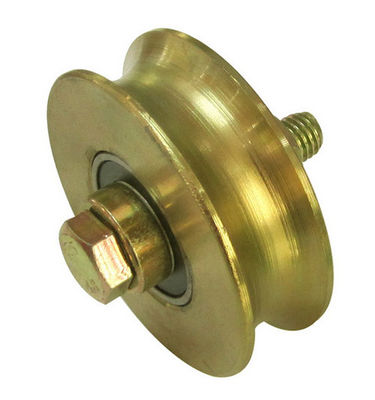

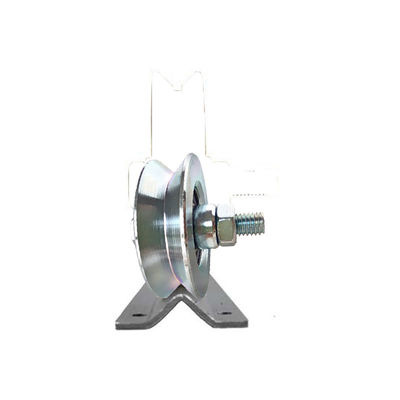

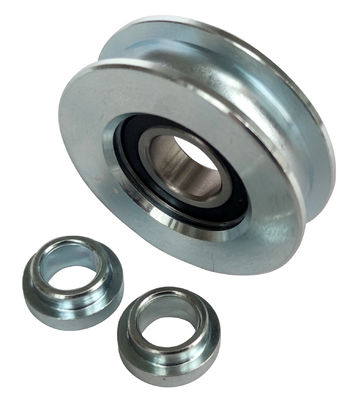

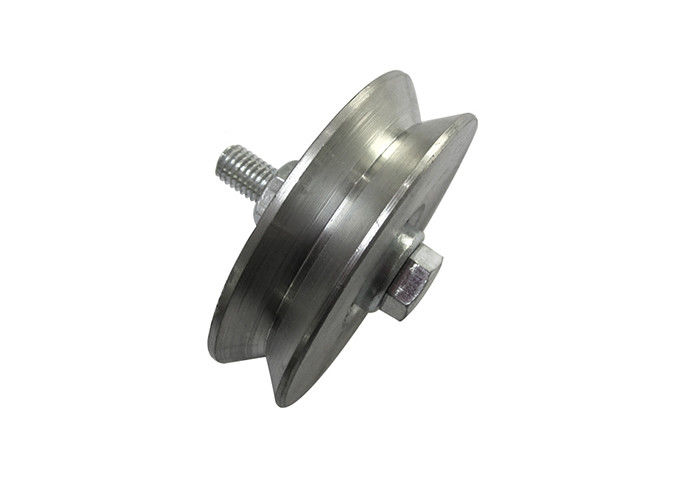

--V Groove Sliding Gate Wheel With Bolt
1. V - shaped groove sliding gate bolted or welded to the under-side of sliding gate, straddling and rolling on the Sliding Gate Tracks. With the control of electrical gate motor , the gate would slide along the tracks.
2. Made of general steel give to quality and durability.
3. Surface alvanized in yellow, color or silvery , which make the wheel perfectly resistant to fight against rust.
4. The existing diameters come in 50mm, 58mm, 68mm, 78mm, 88mm,98mm, of couse, the custom sizes are possible to be developped.
5. In cthe enter of the wheels, single or double bearings are alternative.
6. Y groove sliding gate wheel are matching the V shaped sliding gate tracks, we also produce V shaped tracks, 3m and 5.8m available.
| NO. | D mm | A | C | E | Wt(g) |
| HL1V40 | 38 | 12 | 24 | M8*40 | 101 |
| HL1V50 | 50 | 15 | 26 | M8*40 | 161 |
| HL1V60 | 58 | 17 | 24 | M10*55 | 286 |
| HL1V70 | 68 | 20 | 28 | M10*55 | 456 |
| HL1V80 | 78 | 20 | 28 | M10*55 | 621 |
| HL1V90 | 88 | 20 | 30 | M12*60 | 829 |
| HL1V100 | 98 | 22 | 30 | M12*60 | 1090 |
| HL1V120 | 118 | 25 | 34 | M14*70 | 1854 |
| HL1V140 | 138 | 25 | 44 | M16*75 | 2688 |
| HL1V160 | 158 | 30 | 44 | M16*75 | 4155 |
JINNAIKE supper Sliding Gate Wheel with Bolt(Single Bearing, U Y V groove)
--JINNAIKE other popular gate parts
--Our honor
--Packaging & Delivery
| Packing | All hanging are packaged by standard export package.solid and durable master carton |
| Delivery time | 5-25 day after order confirmed. |
| Payment term | T/T 30% deposit before production,TT 70% balance payment before shipment. |
| Delivery terms | FOB shanghai, CIF. |
--Our service
| Quality | ensure 100% product exported in high quality |
| Delivery | Delivery on time |
| service | Good after-sales service |
Jiaxing Jinnaike Hardware Products Co,.Ltd is a company engaged in hardware products trading company. Our company was established in 1995, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Our Company mainly engaged in sliding gate wheel series,cantilever gate carriage series,nylon roller series,gate hinge,gate latch,gate stopper and post cap. Our products are good in quality and cheap in price.To meet the customers’ demand,we could cooperate not only on the exiting products with customer’s private labels, also the specifications customer made, or even new items that can be produced by the current machine equipment or tooling. Our company has been in good faith to create enterprises, has won a good reputation, also won the respect of their domestic counterparts.
Our company has been certified by ISO9001:2008 and BV(BUREAU VERITAS)
Hope you will be interested in our V Groove Sliding Gate Wheel With Bolt, welcome to contact me, thanks!
