Product Details:
|
| Product: | Gate Wheel With Internal Bracket | Key Words: | Sliding Gate Wheel |
|---|---|---|---|
| Material: | Steel Q235 Metal Iron | Surface: | Galvanized White Or Yellow |
| Size: | From 38mm To 200mm | Bearing: | Single Bearing / Double Bearings |
| MOQ: | 20pcs | Logo: | Sure, Okk |
| High Light: | Steel Q235 Sliding Gate Wheel,U Groove Sliding Gate Wheel,Internal Bracket Galvanized Gate Wheel |
||

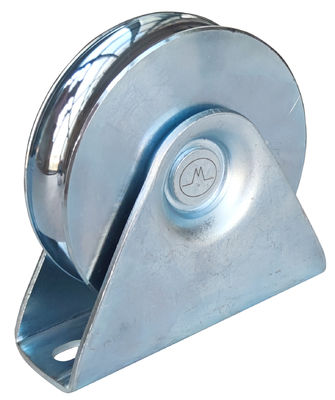

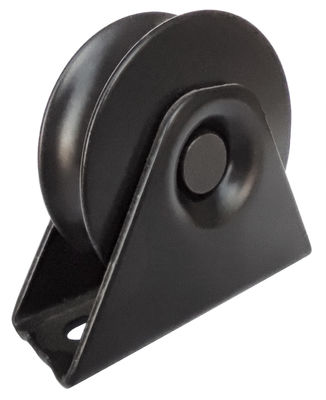

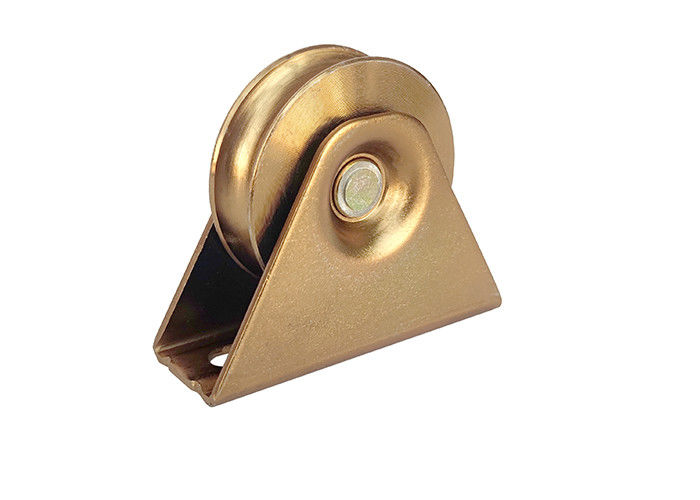

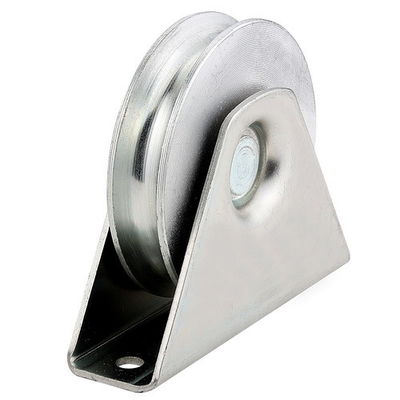

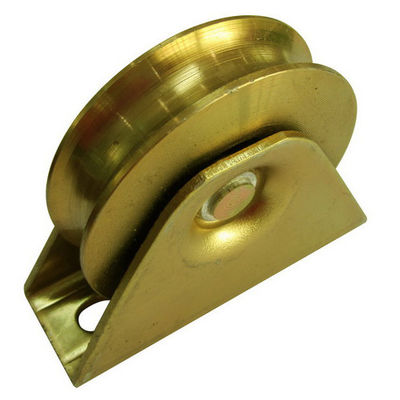

--galvanized U groove Sliding Gate Wheel with Internal bracket
galvanized U groove Sliding Gate Wheel with Internal bracket
It has Y, U, V grooves,
We have size from 38mm to 200mm,
The bearing can be single or double,
The finish can be white zinc plated or yellow zinc plated,
It works with ground track.
We warmly welcome you to visit our factory and send us inquiry to ask for details !
| NO. | D | A | C | H | d | Wt(g) |
| HT1U30R3 | 30 | 10 | 16 | 35 | 6 | 62 |
| HT1U40R5 | 38 | 12 | 20 | 44 | 10.5 | 127 |
| HT1U50R6 | 50 | 15 | 25 | 57 | 12.5 | 237 |
| HT1U60R8 | 58 | 17 | 28 | 64 | 16.5 | 397 |
| HT1U70R8 | 68 | 20 | 35 | 80 | 16.5 | 575 |
| HT1U80R8 | 78 | 20 | 35 | 85 | 16.5 | 731 |
| HT1U90R8 | 88 | 20 | 36 | 100 | 16.5 | 1043 |
| HT1U100R8 | 98 | 22 | 36 | 105 | 16.5 | 1337 |
| HT1U80R10 | 78 | 24 | 35 | 85 | 20.5 | 776 |
| HT1U90R10 | 88 | 25 | 36 | 100 | 20.5 | 1118 |
| HT1U100R10 | 98 | 25 | 36 | 105 | 20.5 | 1360 |
| HT1U120R10 | 118 | 25 | 37 | 127 | 20.5 | 2112 |
JINNAIKE supply galvanized U groove Sliding Gate Wheel with Internal bracket
--JINNAIKE other popular gate parts
--Our honor
--Packaging & Delivery
| Packing | All hanging are packaged by standard export package.solid and durable master carton |
| Delivery time | 5-25 day after order confirmed. |
| Payment term | T/T 30% deposit before production,TT 70% balance payment before shipment. |
| Delivery terms | FOB shanghai, CIF. |
--Our service
| Quality | ensure 100% product exported in high quality |
| Delivery | Delivery on time |
| service | Good after-sales service |
Jiaxing Jinnaike Hardware Products Co,.Ltd is a company engaged in hardware products trading company. Our company was established in 1995, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Our Company mainly engaged in sliding gate wheel series,cantilever gate carriage series,nylon roller series,gate hinge,gate latch,gate stopper and post cap. Our products are good in quality and cheap in price.To meet the customers’ demand,we could cooperate not only on the exiting products with customer’s private labels, also the specifications customer made, or even new items that can be produced by the current machine equipment or tooling. Our company has been in good faith to create enterprises, has won a good reputation, also won the respect of their domestic counterparts.
Our company has been certified by ISO9001:2008 and BV(BUREAU VERITAS)
Hope you will be interested in our galvanized U groove Sliding Gate Wheel with Internal bracket, welcome to contact me, thanks!
