Product Details:
|
| Keywords: | Cantilever Gate Roller | Material: | Steel |
|---|---|---|---|
| Color: | Zinc White Or Raw | Packing: | Bundle |
| Sample: | Allowed | Certification: | SGS IOS TUV |
| MOQ: | 50PCS | Location: | Zhe Jiang China |
| High Light: | 5 Rollers Cantilever Sliding Gate Track,Cantilever Sliding Gate Track SGS IOS,cantilever slide gate kit |
||
Product Description:

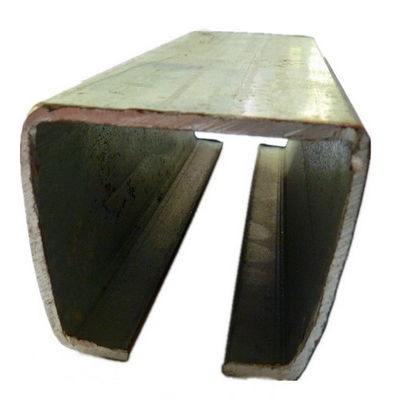

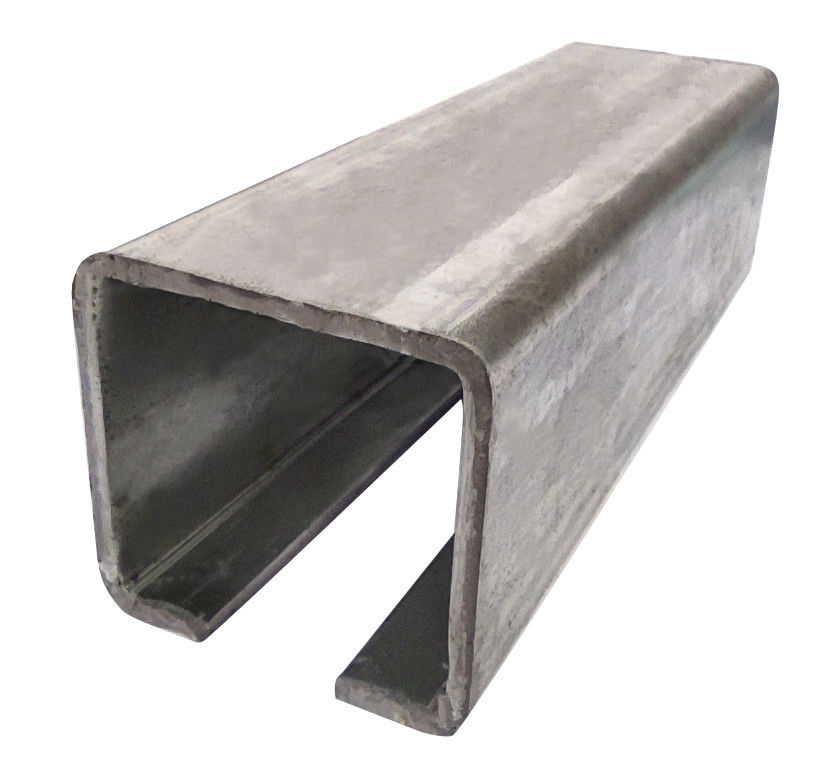

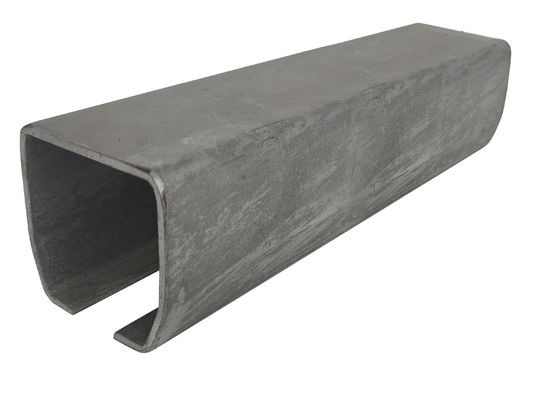

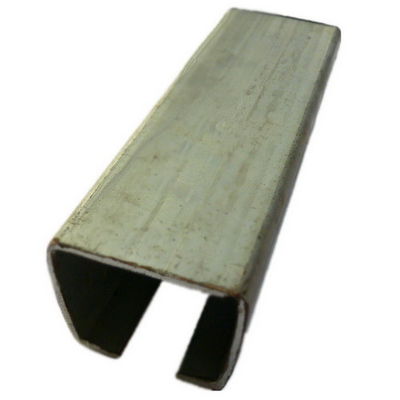

5 wheel Galvanized Wheel Rolling Gates Sliding Cantilever Gate rail
Cantilever is a sliding gate system that doesn't use a track in the ground. The track is instead in the bottom of the gate itself and the rollers are fixed to the ground. This system is perfect for when a track in the ground is not practical due to uneven ground, heavy traffic, or trip hazard.
On a cantiever gate the track is attached to the bottom of the gate the rollers are fixed onto a foundation in the floor at the side of the opening
Cantilver gares are less likely to get jammed with debis
Less likely to be damaged by heavy machinery as there is no floor track
More difficult for the gate to hop off the track
No trip hazzard compared with some bottom rolling systems
Extra space is needed at the side the gate needs to be made approximately 1/3 wider than the opening
The gate needs to support the track and the weight of the gate so it needs to be structuraly strong but light
While the gate is being fitted their may be less disturbance to the property it may be possible to keep the entrance open while the preperation work is carried out The foundation for the rollers is to the side of the opening
| NO. | Lmm | H | A | B | S | WEIGHT(kg/m) |
| XG5S | 68 | 68 | 23 | 48 | 3.5 | 6 |
| XG5M | 100 | 89 | 33 | 66.5 | 5 | 11.8 |
| XG5G | 140 | 140 | 38 | 98 | 6 | 21.8 |
