Product Details:
|
| Keywords: | Sliding Gate Wheel | Application: | Sliding Rolling Gates |
|---|---|---|---|
| Surface Treatment: | Silver Or Yellow Zinc Plated | Meterial: | Metal |
| Payment Terms: | 30% Deposit T/T In Advance,70% T/T Balance | Bearing: | Double Beraings |
| Quality: | High Level | Delivery Time: | Quickly |
Quick Detail:

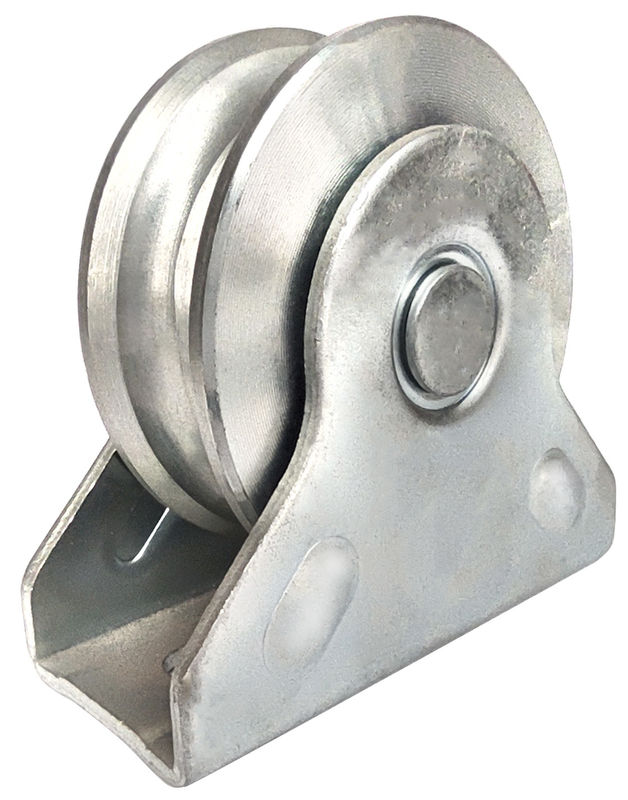

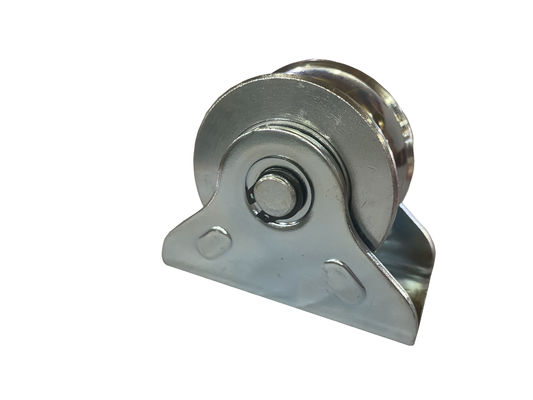

Sliding Gate Wheel Double Bearings with Exterior Bracket For V Track used for sliding Gates.
The V-shaped grooved wheel is made of Q235 steel, finished, very durable and strong. V-shaped grooved wheels can be welded, and steel
pulleys are very suitable for electric/rolling pet doors, industrial carts, assembly fixtures, containers, racks and other equipment.
V-groove casters are designed to guide the equipment to roll on chamfered rails. The elevated track minimizes the problems caused by the floor
Fragments. The "V"-shaped discharge trough at the bottom balances the load on both sides of the angle steel. When not running on the track,
The large wheel treads on both sides of the v-groove are allowed to be used on smooth ground. The important thing is that if multiple tracks are
used,They are parallel, straight and horizontal.
Wheel diameter: 2"/50mm,
Slot width: 0.7"/18mm,
Groove depth: 0.39"/10mm,
Base plate size: 38mm x 67 mm / 1.5" x 2.64",
Mounting distance: 23mm x 53mm / 0.9" x 2.1",661lbs per roller steel wheel
Product Description:
| NO. | D mm | A | C | H | L | WT(g) |
| HH2X30 | 30 | 18 | 26 | 36 | 50 | 100 |
| HH2X40 | 38 | 22 | 28 | 47 | 61 | 183 |
| HH2X50 | 48 | 23 | 32 | 57 | 71 | 320 |
| HH2X60 | 58 | 28 | 38 | 67 | 80 | 524 |
| HH2X70 | 68 | 28 | 38 | 79 | 90 | 838 |
| HH2X80 | 78 | 28 | 38 | 89 | 100 | 1094 |
| HH2X100 | 98 | 28 | 38 | 106 | 120 | 1718 |
Applications:
Factory doors, Gate doors, Warehouse sliding doors, Entrance door
