Product Details:
|
| Key Words: | Cantilever Gate Carraige | Product: | Gate Carraige |
|---|---|---|---|
| Surface: | Galvanized | Size: | 60mm, 78mm, 126mm |
| Usage: | For Cantilever Gate | Packing: | PVC Bags, Cartons, Pallets |
| MOQ: | 20pcs | Logo: | No Problems |
| Highlight: | galvanized cantilever sliding door carriage 5,cantilever sliding door carriage wheel 5,sliding door roller carriage |
||

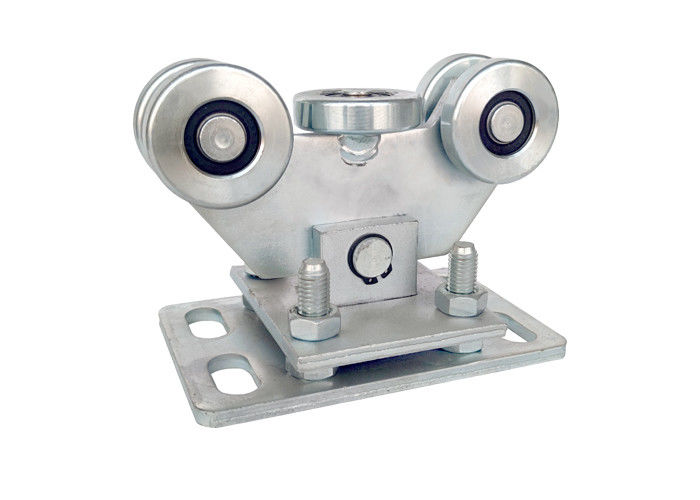

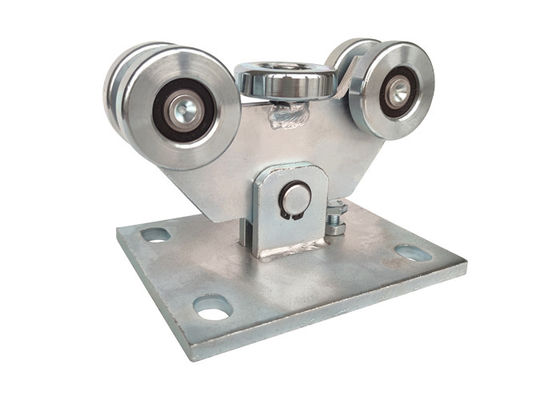

--galvanized cantilever gate carraige with 5 wheels
Item name: galvanized cantilever gate carraige with 5 wheels
Material: steel Q235
Surface finish: galvanzied
Size: 60mm, 78mm, 126mm
MOQ: 20pcs
Packing: PVC bags, cartons, pallets
Logo: yes, no problems
cantilever gate wheel
Heavy duty cantilever gate carriages with sealed bearings. Large pivots allow for increased weight capacity, smooth running and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks. The high weight capacity results in maximum performance.
| No. | Dmm | C | C1 | A | B | H | WEIGHT(g) |
| XL5S | 60 | 47.5 | 15 | 180 | 150 | 136 | 4766 |
| XL5M | 78 | 66 | 20 | 300 | 150 | 173 | 10700 |
| XL5G | 126 | 97 | 30 | 500 | 200 | 246 | 34000 |
gate track
The tracks are galvanized and made from high quality structural material which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track. The track is made from low carbon steel which allows for excellent weldability.
guide bracket with nylon roller
Guiding plate with nylon rollers used to support the gate on the top. Mount on posts on pillars.
guide roller
The guide roller mounts to the end of the track and cover the track to gives a clean finished look. It also prevents dirt, snow, rain etc. from getting inside the track. The bottom wheel of the cup don't engage with the ground. They only engage with the bottom end cup in the closed position.
end stop
The end stop will receive the track in the closed or open position. The beveled edge allows for a smooth stop.

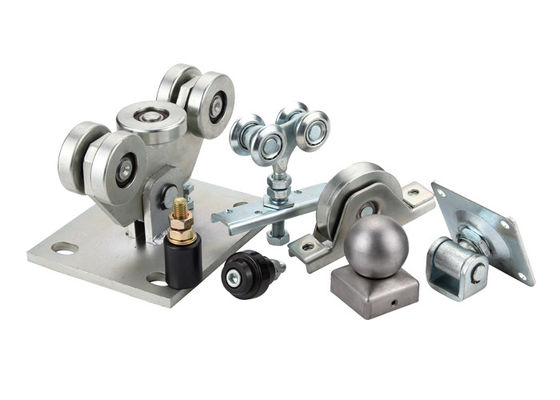

--JINNAIKE one whole cantilever gate hardware from 1995 with good quality and competitive prices

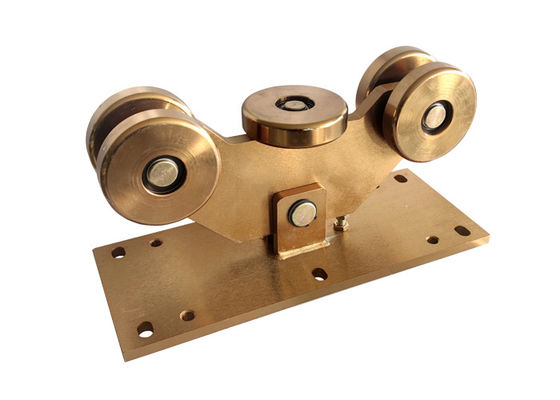

--JInnaike other style cantilever gate wheels

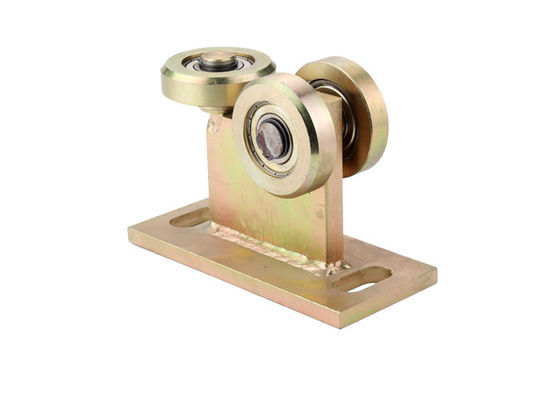

galvanized cantilever gate carraige with 3 wheels

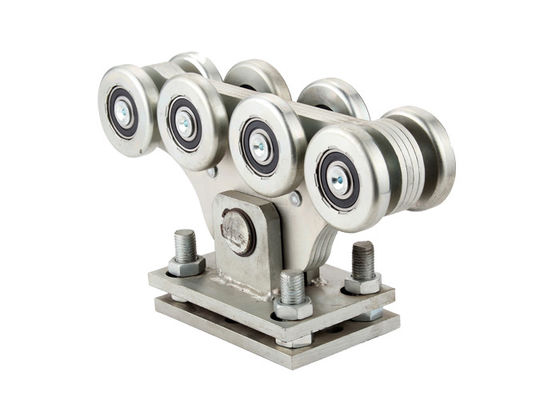

galvanized cantilever gate carraige with 8 wheels
galvanized cantilever gate carraige with 10 wheels
galvanized cantilever gate carraige with 16 wheels
--JINNAIKE other popular gate hardware
--Our honor
--Packaging & Delivery
| Packing | All hanging are packaged by standard export package.solid and durable master carton |
| Delivery time | 5-25 day after order confirmed. |
| Payment term | T/T 30% deposit before production,TT 70% balance payment before shipment. |
| Delivery terms | FOB shanghai, CIF. |
--Our service
| Quality | ensure 100% product exported in high quality |
| Delivery | Delivery on time |
| service | Good after-sales service |
Jiaxing Jinnaike Hardware Products Co. Ltd., a leading worldwide manufacturer in China since originally1995, specializes in manufacturing hardware V groove sliding gate wheel with bearings sliding barn door accessories, gate, door, windows and fence's accessories, sliding gate pulley, hardware which is used for swing gate, sliding cantilever gate, sliding door, folding door and electric retractable door, fence, farm etc. Our company has been certified to comply with ISO9001:2008 Quality Management System, BV(Bureau Veritas) and SGS.
Hope you will be interested in our galvanized cantilever gate carraige with 5 wheels, welcome to contact me, thanks!
